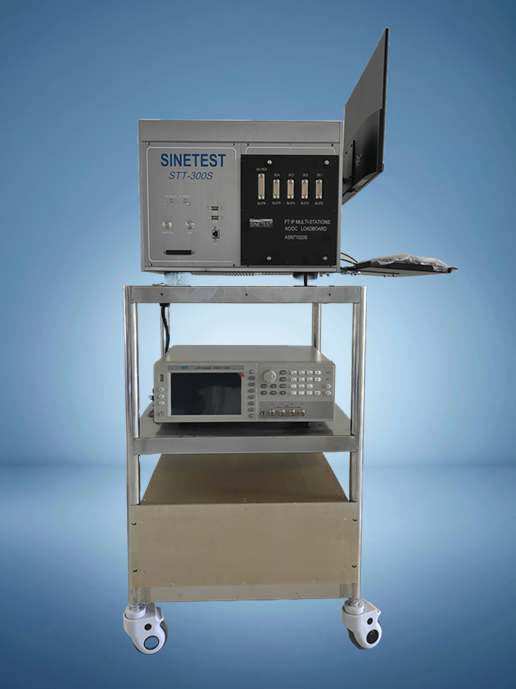

STT-300S is a highly cost-effective desktop semiconductor tester with 6 slots, featuring the following highlights:

  • Compact footprint, powerful functionality, and easy operation, making it an ideal tool for power device test engineers. Suitable for engineering evaluation and QA applications, and also deployable on production lines.

  • Typical configuration: DC, UIL, Rg/Cg, and other modules can be integrated to enable one-station completion of all key parameters, significantly improving laboratory data acquisition efficiency.

  • UIL3K400 module (3kV / 400A, used with a 0.1mH–160 mH adjustable inductor box or a custom inductor), capable of covering a wide range of avalanche tests up to 3kV / 400A, and supporting EAS / EAR / RPF test modes.

  • DDC2K200 module, supporting DC parameter testing up to 2kV / 200A, expandable to 4kV / 600A.

  • LCR module for measuring Rg, Ciss, Coss, Crss, and related parameters, with bias voltage up to 1,400 V.

  • Additional modules from the list below (such as thermal resistance/Dvsd, etc.) can be optionally configured to support other dynamic tests, enabling multi-function testing on a single platform.
